Kaskade::UniformSampler< Function > Class Template Reference

Class that can sample a Function(View) on a uniform rectangular grid. More...

#include <gridscanner.hh>

Detailed Description

template<class Function>
class Kaskade::UniformSampler< Function >

Class that can sample a Function(View) on a uniform rectangular grid.

This is useful, when using higher order FunctionSpaceElement s or highly nonlinear FunctionViews on a relatively coarse grid. The output to PARAVIEW can then be performed in high resolution. The use together with EdgeScanner yields a nice visualization of these functions.

Moreover, it is possible to zoom into interesting regions by defining the area of sampling appropriately.

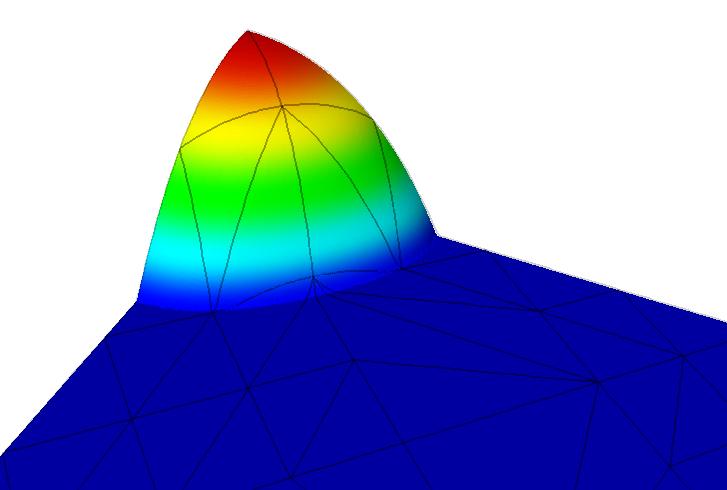

Here a sample of how an output of UniformSampler and EdgeScanner may look like:

Definition at line 48 of file gridscanner.hh.

Public Types
typedef Function::Space	Space
typedef Space::Grid	Grid

Public Member Functions
	UniformSampler (Dune::FieldVector< typename Grid::ctype, spaceDim > const &lb, Dune::FieldVector< typename Grid::ctype, spaceDim > const &ub, Dune::FieldVector< typename Grid::ctype, spaceDim > const &st, Function const &fu, bool dataIsScalar=Function::components==1)
	Performs a uniform sampling of fu on the cuboid marked by lb, ub with stepsize st. More...
void	writeVTK (std::string name)
	Print data in .vtk (Legacy) format. The extension ".vtk" is automatically appended. More...

Static Public Attributes
static int const	spaceDim = Grid::dimension

Member Typedef Documentation

Grid

template<class Function >

typedef Space::Grid Kaskade::UniformSampler< Function >::Grid

Definition at line 52 of file gridscanner.hh.

Space

template<class Function >

typedef Function::Space Kaskade::UniformSampler< Function >::Space

Definition at line 51 of file gridscanner.hh.

Constructor & Destructor Documentation

UniformSampler()

template<class Function >

Kaskade::UniformSampler< Function >::UniformSampler ( Dune::FieldVector< typename Grid::ctype, spaceDim > const &  lb, Dune::FieldVector< typename Grid::ctype, spaceDim > const &  ub, Dune::FieldVector< typename Grid::ctype, spaceDim > const &  st, Function const &  fu, bool  dataIsScalar = Function::components==1  )

inline

Performs a uniform sampling of fu on the cuboid marked by lb, ub with stepsize st.

Parameters

lb	defines the lower bounds of the cuboid
ub	defines the upper bounds of the cuboid
st	determines the stepsize that is taken for sampling in each direction
fu	is a FunctionSpaceElement or a FunctionViews object: the function to be scanned
dataIsScalar	determines whether a vectorial or a multicomponent scalar VTK file is written

Definition at line 65 of file gridscanner.hh.

Member Function Documentation

writeVTK()

template<class Function >

void Kaskade::UniformSampler< Function >::writeVTK ( std::string  name )

inline

Print data in .vtk (Legacy) format. The extension ".vtk" is automatically appended.

Definition at line 79 of file gridscanner.hh.

Member Data Documentation

spaceDim

template<class Function >

int const Kaskade::UniformSampler< Function >::spaceDim = Grid::dimension

static

Definition at line 53 of file gridscanner.hh.

Referenced by Kaskade::UniformSampler< Function >::UniformSampler(), and Kaskade::UniformSampler< Function >::writeVTK().

---

The documentation for this class was generated from the following file:

• gridscanner.hh
