Kaskade::SymmetricLinearOperatorWrapper< X, Xstar > Class Template Reference

Wrapper class to present (hopefully) symmetric linear operators in the SymmetricLinearOperator interface. More...

#include <symmetricOperators.hh>

Detailed Description

template<class X, class Xstar>
class Kaskade::SymmetricLinearOperatorWrapper< X, Xstar >

Wrapper class to present (hopefully) symmetric linear operators in the SymmetricLinearOperator interface.

Note that the "simultaneous" evaluation of \( Ax \) and \( \langle x,Ax\rangle \) is just the sequential one, i.e. there is no performance gain.

Definition at line 158 of file symmetricOperators.hh.

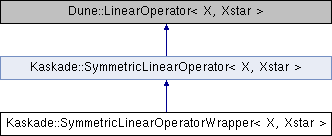

Inheritance diagram for Kaskade::SymmetricLinearOperatorWrapper< X, Xstar >:

Public Types
typedef X::field_type	field_type

Public Member Functions
	SymmetricLinearOperatorWrapper (Dune::LinearOperator< X, Xstar > const &A_, DualPairing< X, Xstar > const &dualPairing_)
	Constructor. More...
virtual void	apply (X const &x, Xstar &y) const
virtual void	applyscaleadd (field_type alpha, X const &x, Xstar &y) const
virtual field_type	dp (X const &x, Xstar const &y) const
	returns the dual pairing \( \langle x, y \rangle \) with respect to which the operator is symmetric More...
virtual field_type	applyDp (X const &x, Xstar &y) const
	operator application Computes \( y \leftarrow Ax \) and returns the dual pairing \( \langle x,y \rangle \). More...
virtual Dune::SolverCategory::Category	category () const override
	returns the category of the operator More...

Member Typedef Documentation

field_type

template<class X , class Xstar >

typedef X::field_type Kaskade::SymmetricLinearOperatorWrapper< X, Xstar >::field_type

Definition at line 161 of file symmetricOperators.hh.

Constructor & Destructor Documentation

SymmetricLinearOperatorWrapper()

template<class X , class Xstar >

Kaskade::SymmetricLinearOperatorWrapper< X, Xstar >::SymmetricLinearOperatorWrapper ( Dune::LinearOperator< X, Xstar > const &  A_, DualPairing< X, Xstar > const &  dualPairing_  )

inline

Constructor.

Parameters

A	the (hopefully symmetric) linear operator
dualPairing	the dual pairing with respect to which the operator is symmetric

Both arguments have to exist during the lifetime of the SymmetricLinearOperatorWrapper object.

Definition at line 171 of file symmetricOperators.hh.

Member Function Documentation

apply()

template<class X , class Xstar >

virtual void Kaskade::SymmetricLinearOperatorWrapper< X, Xstar >::apply ( X const &  x, Xstar &  y  ) const

inlinevirtual

Definition at line 174 of file symmetricOperators.hh.

applyDp()

template<class X , class Xstar >

virtual field_type Kaskade::SymmetricLinearOperator< X, Xstar >::applyDp ( X const &  x, Xstar &  y  ) const

inlinevirtualinherited

operator application Computes \( y \leftarrow Ax \) and returns the dual pairing \( \langle x,y \rangle \).

The default implementation just calls dp(x,y) after the operator application. When implementing this interface in derived classes, consider a more efficient version.

Reimplemented in Kaskade::SymmetricMatrixOperator< X, Matrix >.

Definition at line 81 of file symmetricOperators.hh.

applyscaleadd()

template<class X , class Xstar >

virtual void Kaskade::SymmetricLinearOperatorWrapper< X, Xstar >::applyscaleadd ( field_type  alpha, X const &  x, Xstar &  y  ) const

inlinevirtual

Definition at line 179 of file symmetricOperators.hh.

category()

template<class X , class Xstar >

virtual Dune::SolverCategory::Category Kaskade::SymmetricLinearOperator< X, Xstar >::category ( ) const

inlineoverridevirtualinherited

returns the category of the operator

From the Dune doxygen documentation it is unclear what this is supposed to mean. We return a dummy here.

Definition at line 98 of file symmetricOperators.hh.

dp()

template<class X , class Xstar >

virtual field_type Kaskade::SymmetricLinearOperatorWrapper< X, Xstar >::dp ( X const &  x, Xstar const &  y  ) const

inlinevirtual

returns the dual pairing \( \langle x, y \rangle \) with respect to which the operator is symmetric

Implements Kaskade::SymmetricLinearOperator< X, Xstar >.

Definition at line 187 of file symmetricOperators.hh.

---

The documentation for this class was generated from the following file:

• symmetricOperators.hh
