Kaskade::JacobiPreconditioner< Operator > Class Template Reference

More...

#include <jacobiPreconditioner.hh>

Detailed Description

template<class Operator>
class Kaskade::JacobiPreconditioner< Operator >

A simple single-level Jacobi preconditioner.

Template Parameters

Operator

satisfying the Dune::AssembledLinearOperator concept. Specializations exist for NumaBCRSMatrix and for AssembledGalerkinOperator.

Definition at line 212 of file jacobiPreconditioner.hh.

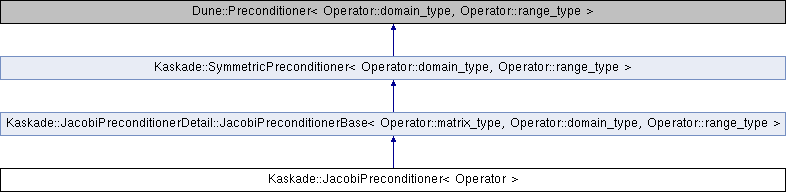

Inheritance diagram for Kaskade::JacobiPreconditioner< Operator >:

Public Types
using	matrix_type = Operator::matrix_type
using	domain_type = Operator::domain_type
using	range_type = Operator::range_type

Public Member Functions
	JacobiPreconditioner (Operator const &op, double w=1.0)
	Constructor. More...
virtual Dune::SolverCategory::Category	category () const override
	returns the category of the operator More...
virtual void	apply (domain_type &x, range_type const &b)
virtual field_type	applyDp (domain_type &x, range_type const &y)
virtual bool	requiresInitializedInput () const
	Returns true if the target vector x has to be initialized to zero before calling apply or applyDp. More...
virtual void	pre (Operator::domain_type &, Operator::range_type &)
	Preconditioner preparation. More...
virtual void	post (Operator::domain_type &x)
	Preconditioner cleanup. More...

Static Public Attributes
static int const	category

Related Functions
(Note that these are not member functions.)
template<class Operator >
auto	makeJacobiPreconditioner (Operator const &op, double w=1.0)
	DEPRECATED, use JacobiPreconditioner(A) directly. More...

Member Typedef Documentation

domain_type

using Kaskade::JacobiPreconditionerDetail::JacobiPreconditionerBase< Operator::matrix_type , Operator::domain_type , Operator::range_type >::domain_type = Operator::domain_type

inherited

Definition at line 162 of file jacobiPreconditioner.hh.

matrix_type

using Kaskade::JacobiPreconditionerDetail::JacobiPreconditionerBase< Operator::matrix_type , Operator::domain_type , Operator::range_type >::matrix_type = Operator::matrix_type

inherited

Definition at line 161 of file jacobiPreconditioner.hh.

range_type

using Kaskade::JacobiPreconditionerDetail::JacobiPreconditionerBase< Operator::matrix_type , Operator::domain_type , Operator::range_type >::range_type = Operator::range_type

inherited

Definition at line 163 of file jacobiPreconditioner.hh.

Constructor & Destructor Documentation

JacobiPreconditioner()

template<class Operator >

Kaskade::JacobiPreconditioner< Operator >::JacobiPreconditioner ( Operator const &  op, double  w = 1.0  )

inline

Constructor.

Parameters

op	the linear operator to be preconditioned
w	the step size or damping factor. For use as a smoother in multigrid, choose \( w < 1 \), e.g., in 1D w=0.5, in 2D w=0.67, and in 3D w=0.7.

Definition at line 227 of file jacobiPreconditioner.hh.

Member Function Documentation

apply()

virtual void Kaskade::JacobiPreconditionerDetail::JacobiPreconditionerBase< Operator::matrix_type , Operator::domain_type , Operator::range_type >::apply ( domain_type &  x, range_type const &  b  )

inlinevirtualinherited

Definition at line 187 of file jacobiPreconditioner.hh.

applyDp()

virtual field_type Kaskade::JacobiPreconditionerDetail::JacobiPreconditionerBase< Operator::matrix_type , Operator::domain_type , Operator::range_type >::applyDp ( domain_type &  x, range_type const &  y  )

inlinevirtualinherited

Implements Kaskade::SymmetricPreconditioner< Operator::domain_type, Operator::range_type >.

Definition at line 189 of file jacobiPreconditioner.hh.

category()

virtual Dune::SolverCategory::Category Kaskade::SymmetricPreconditioner< Operator::domain_type , Operator::range_type >::category ( ) const

inlineoverridevirtualinherited

returns the category of the operator

From the Dune doxygen documentation it is unclear what this is supposed to mean. We return a dummy here.

Definition at line 242 of file symmetricOperators.hh.

post()

virtual void Kaskade::SymmetricPreconditioner< Operator::domain_type , Operator::range_type >::post ( Operator::domain_type &  x )

inlinevirtualinherited

Preconditioner cleanup.

The provided default implementation does nothing.

Definition at line 225 of file symmetricOperators.hh.

pre()

virtual void Kaskade::SymmetricPreconditioner< Operator::domain_type , Operator::range_type >::pre ( Operator::domain_type &  , Operator::range_type &    )

inlinevirtualinherited

Preconditioner preparation.

The provided default implementation does nothing.

Definition at line 218 of file symmetricOperators.hh.

requiresInitializedInput()

virtual bool Kaskade::JacobiPreconditionerDetail::JacobiPreconditionerBase< Operator::matrix_type , Operator::domain_type , Operator::range_type >::requiresInitializedInput ( ) const

inlinevirtualinherited

Returns true if the target vector x has to be initialized to zero before calling apply or applyDp.

Implements Kaskade::SymmetricPreconditioner< Operator::domain_type, Operator::range_type >.

Definition at line 194 of file jacobiPreconditioner.hh.

Member Data Documentation

category

int const Kaskade::JacobiPreconditionerDetail::JacobiPreconditionerBase< Operator::matrix_type , Operator::domain_type , Operator::range_type >::category

staticinherited

Definition at line 159 of file jacobiPreconditioner.hh.

---

The documentation for this class was generated from the following file:

• jacobiPreconditioner.hh
