Base class for homotopy methods. Here, the main algorithm is programmed. More...

#include <homotopy_base.hh>

Detailed Description

Base class for homotopy methods. Here, the main algorithm is programmed.

Definition at line 96 of file homotopy_base.hh.

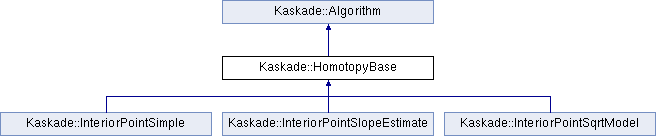

Inheritance diagram for Kaskade::HomotopyBase:

Public Member Functions
	HomotopyBase (NewtonsMethod &n_, InteriorPointParameters &p_)

virtual	~HomotopyBase ()

void	solve (AbstractParameterFunctional *f, AbstractFunctionSpaceElement &x)

void	performTiming (bool doit)

void	reportOnIteration (int level)

Protected Member Functions
virtual void	initialize ()
	Optional overload by derived class. More...

virtual void	finalize ()
	Optional overload by derived class. More...

virtual void	logQuantities ()

virtual void	computePredictor (int step)
	Default: classical predictor. More...

virtual double	muOnSuccess (int step)=0
	New mu if corrector was successful. More...

virtual double	muOnFailure ()=0
	New mu if corrector failed. More...

virtual double	muFinal ()=0
	mu for successful termination More...

virtual void	updateModelOfHomotopy (int step)=0
	update of path parameters, e.g. eta and omega More...

virtual void	initializeCorrector ()=0
	what should be done before corrector More...

virtual void	finalizeCorrector ()=0
	what should be done after corrector More...

virtual void	updateIterate ()=0
	make trial iterate to current iterate (on successful corrector) More...

virtual void	recoverIterate ()=0
	make old iterate to current iterate (on failed corrector) More...

virtual double	lengthOfPath ()=0
	estimate of length of homopoty path More...

virtual int	convergenceTest ()
	convergence test. returns true if method converged and solution is found. More...

virtual void	finalizeHomotopy ()
	to be performed, if convergence of path has occured More...

virtual void	terminationMessage (int errorFlag)
	output of a termination message More...

virtual void	finalize (int)

int	algorithmWrapper ()
	Run algorithm, completely with initialization and finalization. More...

int	oneStepWrapper ()
	Run one step of algorithm. More...

Protected Attributes
NewtonsMethod &	corrector

InteriorPointParameters &	p

AbstractParameterFunctional *	functional

std::unique_ptr< AbstractFunctionSpaceElement >	trialIterate

int	step

int	report

Constructor & Destructor Documentation

◆ HomotopyBase()

Kaskade::HomotopyBase::HomotopyBase	(	NewtonsMethod &	n_,
		InteriorPointParameters &	p_
	)

inline

Definition at line 99 of file homotopy_base.hh.

◆ ~HomotopyBase()

virtual Kaskade::HomotopyBase::~HomotopyBase ( )

inlinevirtual

Definition at line 102 of file homotopy_base.hh.

Member Function Documentation

◆ algorithmWrapper()

int Kaskade::Algorithm::algorithmWrapper ( )

protectedinherited

Run algorithm, completely with initialization and finalization.

◆ computePredictor()

virtual void Kaskade::HomotopyBase::computePredictor ( int step )

protectedvirtual

Default: classical predictor.

Reimplemented in Kaskade::InteriorPointSlopeEstimate.

◆ convergenceTest()

virtual int Kaskade::HomotopyBase::convergenceTest ( )

protectedvirtual

convergence test. returns true if method converged and solution is found.

◆ finalize() [1/2]

virtual void Kaskade::HomotopyBase::finalize ( )

inlineprotectedvirtual

Optional overload by derived class.

Reimplemented in Kaskade::InteriorPointSlopeEstimate.

Definition at line 112 of file homotopy_base.hh.

◆ finalize() [2/2]

virtual void Kaskade::Algorithm::finalize ( int )

inlineprotectedvirtualinherited

Reimplemented in Kaskade::SimpleAdaptiveRefinement, Kaskade::TestErrorEstimator, and Kaskade::NewtonsMethod.

Definition at line 186 of file algorithm_base.hh.

◆ finalizeCorrector()

virtual void Kaskade::HomotopyBase::finalizeCorrector ( )

protectedpure virtual

what should be done after corrector

Implemented in Kaskade::InteriorPointSimple, Kaskade::InteriorPointSqrtModel, and Kaskade::InteriorPointSlopeEstimate.

◆ finalizeHomotopy()

virtual void Kaskade::HomotopyBase::finalizeHomotopy ( )

inlineprotectedvirtual

to be performed, if convergence of path has occured

Reimplemented in Kaskade::InteriorPointSlopeEstimate.

Definition at line 150 of file homotopy_base.hh.

◆ initialize()

virtual void Kaskade::HomotopyBase::initialize ( )

inlineprotectedvirtual

Optional overload by derived class.

Reimplemented from Kaskade::Algorithm.

Reimplemented in Kaskade::InteriorPointSqrtModel, and Kaskade::InteriorPointSlopeEstimate.

Definition at line 109 of file homotopy_base.hh.

◆ initializeCorrector()

virtual void Kaskade::HomotopyBase::initializeCorrector ( )

protectedpure virtual

what should be done before corrector

Implemented in Kaskade::InteriorPointSimple, Kaskade::InteriorPointSqrtModel, and Kaskade::InteriorPointSlopeEstimate.

◆ lengthOfPath()

virtual double Kaskade::HomotopyBase::lengthOfPath ( )

protectedpure virtual

estimate of length of homopoty path

Implemented in Kaskade::InteriorPointSimple, Kaskade::InteriorPointSqrtModel, and Kaskade::InteriorPointSlopeEstimate.

◆ logQuantities()

virtual void Kaskade::HomotopyBase::logQuantities ( )

protectedvirtual

Reimplemented in Kaskade::InteriorPointSqrtModel, and Kaskade::InteriorPointSlopeEstimate.

Referenced by Kaskade::InteriorPointSqrtModel::logQuantities(), and Kaskade::InteriorPointSlopeEstimate::logQuantities().

◆ muFinal()

virtual double Kaskade::HomotopyBase::muFinal ( )

protectedpure virtual

mu for successful termination

Implemented in Kaskade::InteriorPointSimple, Kaskade::InteriorPointSqrtModel, and Kaskade::InteriorPointSlopeEstimate.

◆ muOnFailure()

virtual double Kaskade::HomotopyBase::muOnFailure ( )

protectedpure virtual

New mu if corrector failed.

Implemented in Kaskade::InteriorPointSimple, Kaskade::InteriorPointSqrtModel, and Kaskade::InteriorPointSlopeEstimate.

◆ muOnSuccess()

virtual double Kaskade::HomotopyBase::muOnSuccess ( int step )

protectedpure virtual

New mu if corrector was successful.

Implemented in Kaskade::InteriorPointSimple, Kaskade::InteriorPointSqrtModel, and Kaskade::InteriorPointSlopeEstimate.

◆ oneStepWrapper()

int Kaskade::Algorithm::oneStepWrapper ( )

protectedinherited

Run one step of algorithm.

◆ performTiming()

void Kaskade::Algorithm::performTiming ( bool doit )

inlineinherited

Definition at line 181 of file algorithm_base.hh.

◆ recoverIterate()

virtual void Kaskade::HomotopyBase::recoverIterate ( )

protectedpure virtual

make old iterate to current iterate (on failed corrector)

Implemented in Kaskade::InteriorPointSimple, Kaskade::InteriorPointSqrtModel, and Kaskade::InteriorPointSlopeEstimate.

◆ reportOnIteration()

void Kaskade::Algorithm::reportOnIteration ( int level )

inlineinherited

Definition at line 182 of file algorithm_base.hh.

◆ solve()

void Kaskade::HomotopyBase::solve	(	AbstractParameterFunctional *	f,
		AbstractFunctionSpaceElement &	x
	)

◆ terminationMessage()

virtual void Kaskade::HomotopyBase::terminationMessage ( int errorFlag )

protectedvirtual

output of a termination message

Reimplemented from Kaskade::Algorithm.

◆ updateIterate()

virtual void Kaskade::HomotopyBase::updateIterate ( )

protectedpure virtual

make trial iterate to current iterate (on successful corrector)

Implemented in Kaskade::InteriorPointSimple, Kaskade::InteriorPointSqrtModel, and Kaskade::InteriorPointSlopeEstimate.

◆ updateModelOfHomotopy()

virtual void Kaskade::HomotopyBase::updateModelOfHomotopy ( int step )

protectedpure virtual

update of path parameters, e.g. eta and omega

Implemented in Kaskade::InteriorPointSimple, Kaskade::InteriorPointSqrtModel, and Kaskade::InteriorPointSlopeEstimate.

Member Data Documentation

◆ corrector

NewtonsMethod& Kaskade::HomotopyBase::corrector

protected

Definition at line 155 of file homotopy_base.hh.

Referenced by Kaskade::InteriorPointSqrtModel::finalizeCorrector(), and Kaskade::InteriorPointSlopeEstimate::finalizeCorrector().

◆ functional

AbstractParameterFunctional* Kaskade::HomotopyBase::functional

protected

Definition at line 157 of file homotopy_base.hh.

◆ p

InteriorPointParameters& Kaskade::HomotopyBase::p

protected

Definition at line 156 of file homotopy_base.hh.

Referenced by Kaskade::InteriorPointSimple::lengthOfPath(), Kaskade::InteriorPointSqrtModel::lengthOfPath(), Kaskade::InteriorPointSlopeEstimate::lengthOfPath(), Kaskade::InteriorPointSqrtModel::muFinal(), Kaskade::InteriorPointSlopeEstimate::muFinal(), Kaskade::InteriorPointSimple::muOnFailure(), Kaskade::InteriorPointSlopeEstimate::muOnFailure(), and Kaskade::InteriorPointSimple::muOnSuccess().

◆ report

int Kaskade::Algorithm::report

protectedinherited

Definition at line 193 of file algorithm_base.hh.

Referenced by Kaskade::Algorithm::reportOnIteration().

◆ step

int Kaskade::HomotopyBase::step

protected

Definition at line 160 of file homotopy_base.hh.

◆ trialIterate

std::unique_ptr<AbstractFunctionSpaceElement> Kaskade::HomotopyBase::trialIterate

protected

Definition at line 159 of file homotopy_base.hh.

Referenced by Kaskade::InteriorPointSqrtModel::initialize(), Kaskade::InteriorPointSlopeEstimate::initialize(), Kaskade::InteriorPointSqrtModel::recoverIterate(), and Kaskade::InteriorPointSlopeEstimate::recoverIterate().

The documentation for this class was generated from the following file:

homotopy_base.hh
