#include <lagrangespace.hh>

Detailed Description

template<class GV, class SupportOracle, class ScalarType = double>
class Kaskade::ContinuousLagrangeMapperSubdomainImplementation< GV, SupportOracle, ScalarType >

Definition at line 545 of file lagrangespace.hh.

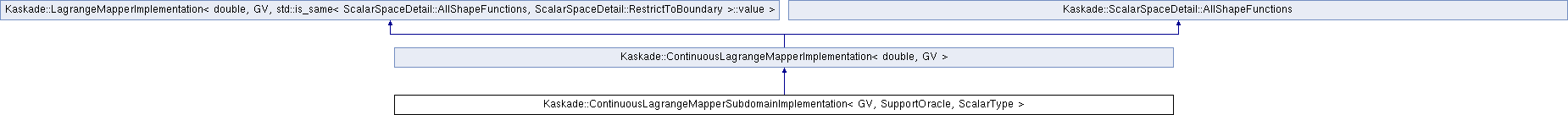

Inheritance diagram for Kaskade::ContinuousLagrangeMapperSubdomainImplementation< GV, SupportOracle, ScalarType >:

Public Types
using	GridView = GV

typedef GV::IndexSet	IndexSet

typedef double	Scalar

using	Cell = typename Base::Cell

typedef GridView::Grid	Grid

using	ctype = typename Grid::ctype

using	ShapeFunctionSet = typename LagrangeShapeFunctionSetContainer< ctype, dim, Scalar, restricted >::value_type

typedef ScalarConverter< Cell, Scalar >	Converter

Public Member Functions
	ContinuousLagrangeMapperSubdomainImplementation (GridView const &gridView, int order, SupportOracle &&supportOracle_)

void	update ()

size_t	size (Dune::GeometryType gt) const
	Returns the number of entities of given geometry type in our support. More...

bool	inSupport (typename Base::Cell const &cell) const
	Tells whether the given cell is contained in the support. More...

Index	subIndex (typename Base::Cell const &cell, int subentity, int codim) const

int	dofOnEntity (Dune::GeometryType gt) const
	Returns the number of degrees of freedom (global ansatz functions) uniquely associated to the given subentity type. More...

void	entityIndex (Cell const &cell, ShapeFunction const &sf, int n, Dune::GeometryType &gt, int &subentity, int &codim, int &indexInSubentity, Data &data) const
	Returns the geometry type, subentity number in cell and subentity codimension for the subentity to which the dof is associated. More...

IndexSet const &	indexSet () const
	The index set obtained from gridView(). More...

bool	inSupport (Cell const &cell) const
	Tells whether the given cell is contained in the support. More...

IndexSet::IndexType	subIndex (Cell const &cell, int subentity, int codim) const
	Returns the index of the specified subentity. More...

GridView const &	gridView () const

ShapeFunctionSet const &	shapeFunctions (Cell const &cell) const

ShapeFunctionSet const &	lowerShapeFunctions (Cell const &cell) const

ShapeFunctionSet const &	emptyShapeFunctionSet () const

int	order () const

template<class Data , class GridView , class Cell >
void	treatBoundary (Data &, GridView const &, Cell const &, int, int) const

Static Public Attributes
static int const	dim

Member Typedef Documentation

◆ Cell

using Kaskade::ContinuousLagrangeMapperImplementation< double , GV, ScalarSpaceDetail::AllShapeFunctions >::Cell = typename Base::Cell

inherited

Definition at line 391 of file lagrangespace.hh.

◆ Converter

typedef ScalarConverter<Cell,Scalar> Kaskade::LagrangeMapperImplementation< double , GV, restricted >::Converter

inherited

Definition at line 163 of file lagrangespace.hh.

◆ ctype

using Kaskade::LagrangeMapperImplementation< double , GV, restricted >::ctype = typename Grid::ctype

inherited

Definition at line 60 of file lagrangespace.hh.

◆ Grid

typedef GridView::Grid Kaskade::LagrangeMapperImplementation< double , GV, restricted >::Grid

inherited

Definition at line 56 of file lagrangespace.hh.

◆ GridView

template<class GV , class SupportOracle , class ScalarType = double>

using Kaskade::ContinuousLagrangeMapperSubdomainImplementation< GV, SupportOracle, ScalarType >::GridView = GV

Definition at line 552 of file lagrangespace.hh.

◆ IndexSet

typedef GV::IndexSet Kaskade::ContinuousLagrangeMapperImplementation< double , GV, ScalarSpaceDetail::AllShapeFunctions >::IndexSet

inherited

Definition at line 388 of file lagrangespace.hh.

◆ Scalar

typedef double Kaskade::ContinuousLagrangeMapperImplementation< double , GV, ScalarSpaceDetail::AllShapeFunctions >::Scalar

inherited

Definition at line 389 of file lagrangespace.hh.

◆ ShapeFunctionSet

using Kaskade::LagrangeMapperImplementation< double , GV, restricted >::ShapeFunctionSet = typename LagrangeShapeFunctionSetContainer<ctype,dim,Scalar,restricted>::value_type

inherited

Definition at line 64 of file lagrangespace.hh.

Constructor & Destructor Documentation

◆ ContinuousLagrangeMapperSubdomainImplementation()

template<class GV , class SupportOracle , class ScalarType = double>

Kaskade::ContinuousLagrangeMapperSubdomainImplementation< GV, SupportOracle, ScalarType >::ContinuousLagrangeMapperSubdomainImplementation	(	GridView const &	gridView,
		int	order,
		SupportOracle &&	supportOracle_
	)

inline

Definition at line 554 of file lagrangespace.hh.

Member Function Documentation

◆ dofOnEntity()

int Kaskade::ContinuousLagrangeMapperImplementation< double , GV, ScalarSpaceDetail::AllShapeFunctions >::dofOnEntity ( Dune::GeometryType gt ) const

inlineinherited

Returns the number of degrees of freedom (global ansatz functions) uniquely associated to the given subentity type.

Definition at line 403 of file lagrangespace.hh.

◆ emptyShapeFunctionSet()

ShapeFunctionSet const & Kaskade::LagrangeMapperImplementation< double , GV, restricted >::emptyShapeFunctionSet ( ) const

inlineinherited

Definition at line 154 of file lagrangespace.hh.

◆ entityIndex()

void Kaskade::ContinuousLagrangeMapperImplementation< double , GV, ScalarSpaceDetail::AllShapeFunctions >::entityIndex	(	Cell const &	cell,
		ShapeFunction const &	sf,
		int	n,
		Dune::GeometryType &	gt,
		int &	subentity,
		int &	codim,
		int &	indexInSubentity,
		Data &	data
	)		const

inlineinherited

Returns the geometry type, subentity number in cell and subentity codimension for the subentity to which the dof is associated.

Here we have a continuous discretization, where all dofs are associated to the entities on which the shape function node is located.

Parameters

[out]	gt	the geometry type of the subentity on which the shape function lies
[out]	subentity	the number of the subentity on which the shape function lies
[out]	codim	the codimension of the subentity on which the shape function lies
[out]	indexInSubentity
[out]	data

Definition at line 437 of file lagrangespace.hh.

◆ gridView()

GridView const & Kaskade::LagrangeMapperImplementation< double , GV, restricted >::gridView ( ) const

inlineinherited

Definition at line 111 of file lagrangespace.hh.

◆ indexSet()

IndexSet const & Kaskade::LagrangeMapperImplementation< double , GV, restricted >::indexSet ( ) const

inlineinherited

The index set obtained from gridView().

Definition at line 79 of file lagrangespace.hh.

◆ inSupport() [1/2]

bool Kaskade::LagrangeMapperImplementation< double , GV, restricted >::inSupport ( Cell const & cell ) const

inlineinherited

Tells whether the given cell is contained in the support.

The default implementation realizes global support, i.e., all cells are contained.

Definition at line 97 of file lagrangespace.hh.

◆ inSupport() [2/2]

template<class GV , class SupportOracle , class ScalarType = double>

bool Kaskade::ContinuousLagrangeMapperSubdomainImplementation< GV, SupportOracle, ScalarType >::inSupport ( typename Base::Cell const & cell ) const

inline

Tells whether the given cell is contained in the support.

The default implementation realizes global support, i.e., all cells are contained.

Definition at line 628 of file lagrangespace.hh.

◆ lowerShapeFunctions()

ShapeFunctionSet const & Kaskade::LagrangeMapperImplementation< double , GV, restricted >::lowerShapeFunctions ( Cell const & cell ) const

inlineinherited

Definition at line 149 of file lagrangespace.hh.

◆ order()

int Kaskade::LagrangeMapperImplementation< double , GV, restricted >::order ( ) const

inlineinherited

Definition at line 160 of file lagrangespace.hh.

◆ shapeFunctions()

ShapeFunctionSet const & Kaskade::LagrangeMapperImplementation< double , GV, restricted >::shapeFunctions ( Cell const & cell ) const

inlineinherited

Definition at line 136 of file lagrangespace.hh.

◆ size()

template<class GV , class SupportOracle , class ScalarType = double>

size_t Kaskade::ContinuousLagrangeMapperSubdomainImplementation< GV, SupportOracle, ScalarType >::size ( Dune::GeometryType gt ) const

inline

Returns the number of entities of given geometry type in our support.

Definition at line 618 of file lagrangespace.hh.

◆ subIndex() [1/2]

IndexSet::IndexType Kaskade::LagrangeMapperImplementation< double , GV, restricted >::subIndex	(	Cell const &	cell,
		int	subentity,
		int	codim
	)		const

inlineinherited

Returns the index of the specified subentity.

Definition at line 105 of file lagrangespace.hh.

◆ subIndex() [2/2]

template<class GV , class SupportOracle , class ScalarType = double>

Index Kaskade::ContinuousLagrangeMapperSubdomainImplementation< GV, SupportOracle, ScalarType >::subIndex	(	typename Base::Cell const &	cell,
		int	subentity,
		int	codim
	)		const

inline

Definition at line 636 of file lagrangespace.hh.

◆ treatBoundary()

template<class Data , class GridView , class Cell >

void Kaskade::ScalarSpaceDetail::AllShapeFunctions::treatBoundary	(	Data &	,
		GridView const &	,
		Cell const &	,
		int	,
		int
	)		const

inlineinherited

Definition at line 162 of file scalarspace.hh.

Referenced by Kaskade::ContinuousHierarchicMapperImplementation< Scalar, GV, ShapeFunctionFilter >::entityIndex(), Kaskade::ContinuousHierarchicExtensionMapperImplementation< Scalar, GV, ShapeFunctionFilter >::entityIndex(), and Kaskade::ContinuousLagrangeMapperImplementation< ScalarType, GV, ShapeFunctionFilter >::entityIndex().

◆ update()

template<class GV , class SupportOracle , class ScalarType = double>

void Kaskade::ContinuousLagrangeMapperSubdomainImplementation< GV, SupportOracle, ScalarType >::update ( )

inline

Definition at line 560 of file lagrangespace.hh.

Member Data Documentation

◆ dim

int const Kaskade::LagrangeMapperImplementation< double , GV, restricted >::dim

staticinherited

Definition at line 62 of file lagrangespace.hh.

The documentation for this class was generated from the following file:

lagrangespace.hh
