#include <kaskadeBridge.hh>

Detailed Description

template<class Functional, int stateId = 1, int adjointId = 2>
class Kaskade::Bridge::NormalStepLinearization< Functional, stateId, adjointId >

Definition at line 314 of file kaskadeBridge.hh.

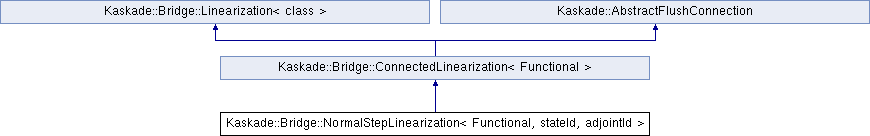

Inheritance diagram for Kaskade::Bridge::NormalStepLinearization< Functional, stateId, adjointId >:

Public Member Functions
	NormalStepLinearization ()

	NormalStepLinearization (Functional const &fu, DomainElement const &x)
	Creation of a linearization for a functional fu at x_. More...

	NormalStepLinearization (Functional const &fu, DomainElement const &x, std::shared_ptr< Assembler > const &assembler)
	Creation of a linearization for a functional fu at x_. More...

	NormalStepLinearization (Base const &other)

void	getMatrixBlocks (MatrixAsTriplet< Scalar > &mat, int rbegin=0, int rend=-1, int cbegin=0, int cend=-1) const
	write blocks of the hessian matrix into mat More...

void	ddxpy (AbstractFunctionSpaceElement &y, AbstractFunctionSpaceElement const &x, int rbegin=0, int rend=-1, int cbegin=0, int cend=-1) const

void	d2axpy (double a, AbstractFunctionSpaceElement &y, AbstractFunctionSpaceElement const &x, int rbegin=0, int rend=-1, int cbegin=0, int cend=-1) const

virtual void	flush ()

virtual void	connectToSignalForFlush (boost::signals2::signal< void()> &sig)

Public Attributes
boost::signals2::signal< void()>	changed

boost::signals2::connection	flushconn

Constructor & Destructor Documentation

◆ NormalStepLinearization() [1/4]

template<class Functional , int stateId = 1, int adjointId = 2>

Kaskade::Bridge::NormalStepLinearization< Functional, stateId, adjointId >::NormalStepLinearization ( )

inline

Definition at line 324 of file kaskadeBridge.hh.

◆ NormalStepLinearization() [2/4]

template<class Functional , int stateId = 1, int adjointId = 2>

Kaskade::Bridge::NormalStepLinearization< Functional, stateId, adjointId >::NormalStepLinearization	(	Functional const &	fu,
		DomainElement const &	x
	)

inline

Creation of a linearization for a functional fu at x_.

Definition at line 327 of file kaskadeBridge.hh.

◆ NormalStepLinearization() [3/4]

template<class Functional , int stateId = 1, int adjointId = 2>

Kaskade::Bridge::NormalStepLinearization< Functional, stateId, adjointId >::NormalStepLinearization	(	Functional const &	fu,
		DomainElement const &	x,
		std::shared_ptr< Assembler > const &	assembler
	)

inline

Creation of a linearization for a functional fu at x_.

Definition at line 330 of file kaskadeBridge.hh.

◆ NormalStepLinearization() [4/4]

template<class Functional , int stateId = 1, int adjointId = 2>

Kaskade::Bridge::NormalStepLinearization< Functional, stateId, adjointId >::NormalStepLinearization ( Base const & other )

inline

Definition at line 332 of file kaskadeBridge.hh.

Member Function Documentation

◆ connectToSignalForFlush()

template<class Linearization >

virtual void Kaskade::Bridge::ConnectedLinearization< Linearization >::connectToSignalForFlush ( boost::signals2::signal< void()> & sig )

inlinevirtualinherited

Implements Kaskade::AbstractFlushConnection.

Definition at line 40 of file kaskadeBridge.hh.

◆ d2axpy()

template<class Functional , int stateId = 1, int adjointId = 2>

void Kaskade::Bridge::NormalStepLinearization< Functional, stateId, adjointId >::d2axpy	(	double	a,
		AbstractFunctionSpaceElement &	y,
		AbstractFunctionSpaceElement const &	x,
		int	rbegin = `0`,
		int	rend = `-1`,
		int	cbegin = `0`,
		int	cend = `-1`
	)		const

inline

Definition at line 410 of file kaskadeBridge.hh.

◆ ddxpy()

template<class Functional , int stateId = 1, int adjointId = 2>

void Kaskade::Bridge::NormalStepLinearization< Functional, stateId, adjointId >::ddxpy	(	AbstractFunctionSpaceElement &	y,
		AbstractFunctionSpaceElement const &	x,
		int	rbegin = `0`,
		int	rend = `-1`,
		int	cbegin = `0`,
		int	cend = `-1`
	)		const

inline

Definition at line 394 of file kaskadeBridge.hh.

◆ flush()

template<class Linearization >

virtual void Kaskade::Bridge::ConnectedLinearization< Linearization >::flush ( )

inlinevirtualinherited

Definition at line 38 of file kaskadeBridge.hh.

◆ getMatrixBlocks()

template<class Functional , int stateId = 1, int adjointId = 2>

void Kaskade::Bridge::NormalStepLinearization< Functional, stateId, adjointId >::getMatrixBlocks	(	MatrixAsTriplet< Scalar > &	mat,
		int	rbegin = `0`,
		int	rend = `-1`,
		int	cbegin = `0`,
		int	cend = `-1`
	)		const
